The 0.3-3 Mm Thick 1600mm Wide Steel Coil Slitting Line For HRC Steel Coil Slitter is a machine used in the metal processing industry to cut wide steel coils into narrower strips. This process is essential for preparing the material for subsequent processes such as milling, pipe welding, cold forming, and punch forming. The slitting line can also be used for slitting various non-ferrous metals.
The thickness can range from the thinnest down to 0.30 mm, to the thickest up to 3 mm
Strip Width, from the narrowest 400 mm to the widest 1600 mm
Coils Weight, up to 20 tons
Line Speed, up to 100 m/min.
- High precision slitting with tight tolerances
- Multi-strip slitting capability
- Wide coil capacity, accommodating various industry requirements
- Easy and quick setup with efficient changeover
- Safety features such as emergency stop buttons, safety guards, and sensors to protect operators and prevent accidents during operation
- Customization and flexibility, allowing for versatile applications across different industries.
- High production output
- Good and reliable quality control
| Model No. | 0.3-3.0 |
| Coil Material | HRC |
| Coil Thickness | 0.3-3.0mm |
| Line Speed | 0-100m/min. |
| Coil Weight | ≤20T |
| Coil I.D | φ508mm |
| Coil O.D | ≤φ1800mm |
| Strip Width | ≥25mm |
| Number of Strip | 8-20 |
| Slitting Accuracy | ±0.15mm |
| Blade shaft | Ф240mm |
| Electrical Control System | PLC Automatic control |
Note: Customized slitting line as per customer's requirements and demands would be available.
Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter → Loop →Side guide device→ Double Slitter (with change car)→Scrap winder→Loop →Tension stand (with S ROLLS)→Recoielr→Exit coil car
The 0.3-3 Mm Thick 1600mm Wide Steel Coil Slitting Line finds its application in various industries that require precise and efficient processing of thin-gauge metal coils.
Automotive Industry: trim strips, brackets, reinforcements, and specialized parts
Electronics Industry: electronic components, including connectors, shielding materials, and stamped parts.
Construction Industry: roofing sheets, wall panels, and profiles.
Packaging Industry: packaging materials like aluminum foils, flexible packaging films, and paperboard laminates.
Appliances and Household Goods: household appliances and goods.
Packaging:
All parts of the 0.3-3 Mm Thick 1600mm Wide Steel Coil Slitting Line are fixed inside container by steel wires and special PET straps, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
Shipping:
The 0.3-3 Mm Thick 1600mm Wide Steel Coil Slitting Line is often shipped via ocean freight, especially for international transportation. The equipment is securely loaded into shipping containers or flat racks, which are then loaded onto cargo vessels. This mode is suitable for long-distance shipping and can accommodate larger and heavier slitting lines.
Air Freight: When there is a need for fast delivery or for shipping smaller or lighter slitting line, air freight can be used. The equipment is packed and loaded onto aircraft for transportation. Air freight is typically more expensive than ocean freight but offers quicker transit times.
Q1. What is steel coil slitting?
Steel coil slitting is a process used to cut a master coil of metal into several narrower coils or strips. It involves running the master coil through a set of rotary slitting knives to make cuts in the desired locations.
Q2. What industries can benefit from narrow coil slitting?
Industries such as multi-slide stamping, power generation, infrastructure, and tubing can benefit from narrow coil slitting, as it allows for the production of narrow cuts tailored to their specific needs.
Q3. How can a steel coil slitting line streamline the production process?
A steel coil slitting line can streamline the production process by efficiently cutting master coils into narrower coils or strips, reducing material waste, and maximizing the usable material. This helps to optimize production efficiency and reduce costs.
Q4. What are the advantages of a cost-effective steel coil slitting line?
A cost-effective steel coil slitting line offers several advantages, including reduced scrap and waste, monitored delivery times, and the ability to meet tight width tolerances. It also provides value-added services such as metallurgical testing and toll processing/storage.
Q5. How can I ensure the steel coil slitting line I choose meets my specific industry requirements?
From design to production, we have a professional team including technical, commercial and production depart. to provide customized service. During installation and commissioning on site, our team will not leave until the line can run in normal.
|
|

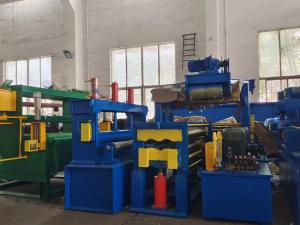

0.3-3 Mm Thick 1600mm wide Steel Coil Slitting Line For HRC Steel Coil Slitter Images
|
